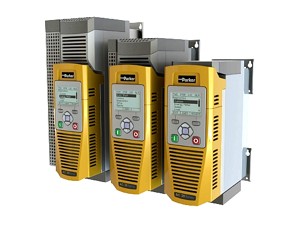

Parker SSD AC30V Modular Series

Parker SSD AC30V Modular Series

The AC30V industrial drive has been specifically designed to provide users with exceptional levels of control for pumps, fans and general purpose applications.

Drive functionality can be extended for particular applications with the addition of an optional I/O module. These include real-time clock, thermistor and expanded analogue and digital I/O.

Provides maximum productivity, quick and easy installation and built to international standards.

Key Features

  • Dedicated pump and fan macros
  • Control algorithm optimised for either AC induction or PMAC motors
  • Conformal coated pcb's as standard
  • Split cooling paths for power and control electronics
  • Removable cassette fan
  • Field fittable options
  • Panel mount or through panel as standard
  • Integrated commissioning wizard
  • Selectable multi-language LCD display
  • Ethernet and Modbus TCP/IP as standard
  • Safe torque off (STO) - EN13849 PLe

Ratings & Dimensions

380-480Volt 3phase EMC compliant to EN61800-3 C2 1st Environment

kW Amps* kW Amps* Dimensions WxHxD (mm) Protection
Variable Torque Constant Torque
1.1 3.5 0.75 2.5 100 x 283 x 255 IP.20
1.5 4.5 1.1 3.5 100 x 283 x 255 IP.20
2.2 5.5 1.5 4.5 100 x 283 x 255 IP.20
3 7.5 2.2 5.5 100 x 283 x 255 IP.20
4 10 3 7.5 100 x 283 x 255 IP.20
5.5 12 4 10 100 x 283 x 255 IP.20
7.5 16 5.5 12 125 x 330 x 255 IP.20
11 23 7.5 16 125 x 330 x 255 IP.20
15 32 11 23 150 x 380 x 255 IP.20
18 38 15 32 150 x 380 x 255 IP.20

*Amps at 400Volt
