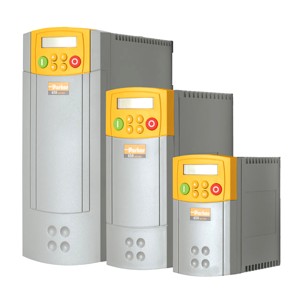

Parker SSD AC650 Series
A general purpose drive, the AC650 series inverters provide basic speed control of standard three phase AC motors from 0.3 to 10 Hp (0.25 to 7.5 Kw). They are full of useful features including pre-programmed applications - all designed to simplify set-up, installation and operation.
With the AC650 Series, you are in control of your application immediately - no complicated set-up procedures, no confusing menu navigation: just quick and easy operation straight from the box.
Key Features
- Compact
- DIN rail mount
- Simple set-up and programming
- Removable keypad included
- Cloning module option
- PID control included
- Inbuilt EMC filter
- 8 preset speeds
- V/Hz linear or quadratic control
- RS485/RS232 option
Ratings & Dimensions
220-240Volt 1ph Supply
| Type |
kW |
Amps |
Dimensions WxHxD mm |
Protection |
| 650-21115010-0F1P00-A2 |
0.25 |
1.5 |
73 x 132 x 142 |
IP.20 |
| 650-21122010-0F1P00-A2 |
0.37 |
2.2 |
73 x 132 x 142 |
IP.20 |
| 650-21130010-0F1P00-A2 |
0.55 |
3 |
73 x 132 x 142 |
IP.20 |
| 650-21140010-0F1P00-A2 |
0.75 |
4 |
73 x 132 x 142 |
IP.20 |
| 650-21155020-0F1P00-A2 |
1.1 |
5.5 |
73 x 188 x 173 |
IP.20 |
| 650-21170020-0F1P00-A2 |
1.5 |
7 |
73 x 188 x 173 |
IP.20 |
| 650-221960030-BF1P00-A2 |
2.2 |
9.6 |
73 x 242 x 200 |
IP.20 |
380-460Volt 3ph Supply
| Type |
kW |
Amps |
Dimensions WxHxD mm |
Protection |
| 650-43115020-BF1P00-A2 |
0.37 |
1.5 |
73 x 188 x 173 |
IP.20 |
| 650-43120020-BF1P00-A2 |
0.55 |
2 |
73 x 188 x 173 |
IP.20 |
| 650-43125020-BF1P00-A2 |
0.75 |
2.5 |
73 x 188 x 173 |
IP.20 |
| 650-43135020-BF1P00-A2 |
1.1 |
3.5 |
73 x 188 x 173 |
IP.20 |
| 650-43145020-BF1P00-A2 |
1.5 |
4.5 |
73 x 188 x 173 |
IP.20 |
| 650-43155020-BF1P00-A2 |
2.2 |
5.5 |
73 x 188 x 173 |
IP.20 |
| 650-43168030-BF1P00-A2 |
3 |
6.8 |
96 x 242 x 200 |
IP.20 |
| 650-43190030-BF1P00-A2 |
4 |
9 |
96 x 242 x 200 |
IP.20 |
| 650-43212030-BF1P00-A2 |
5.5 |
12 |
96 x 242 x 200 |
IP.20 |
| 650-43216030-BF1P00-A2 |
7.5 |
16 |
96 x 242 x 200 |
IP.20 |
